Weidmüller Crimping Tools
CRIMPFIX ECO & PZ 2.5 S

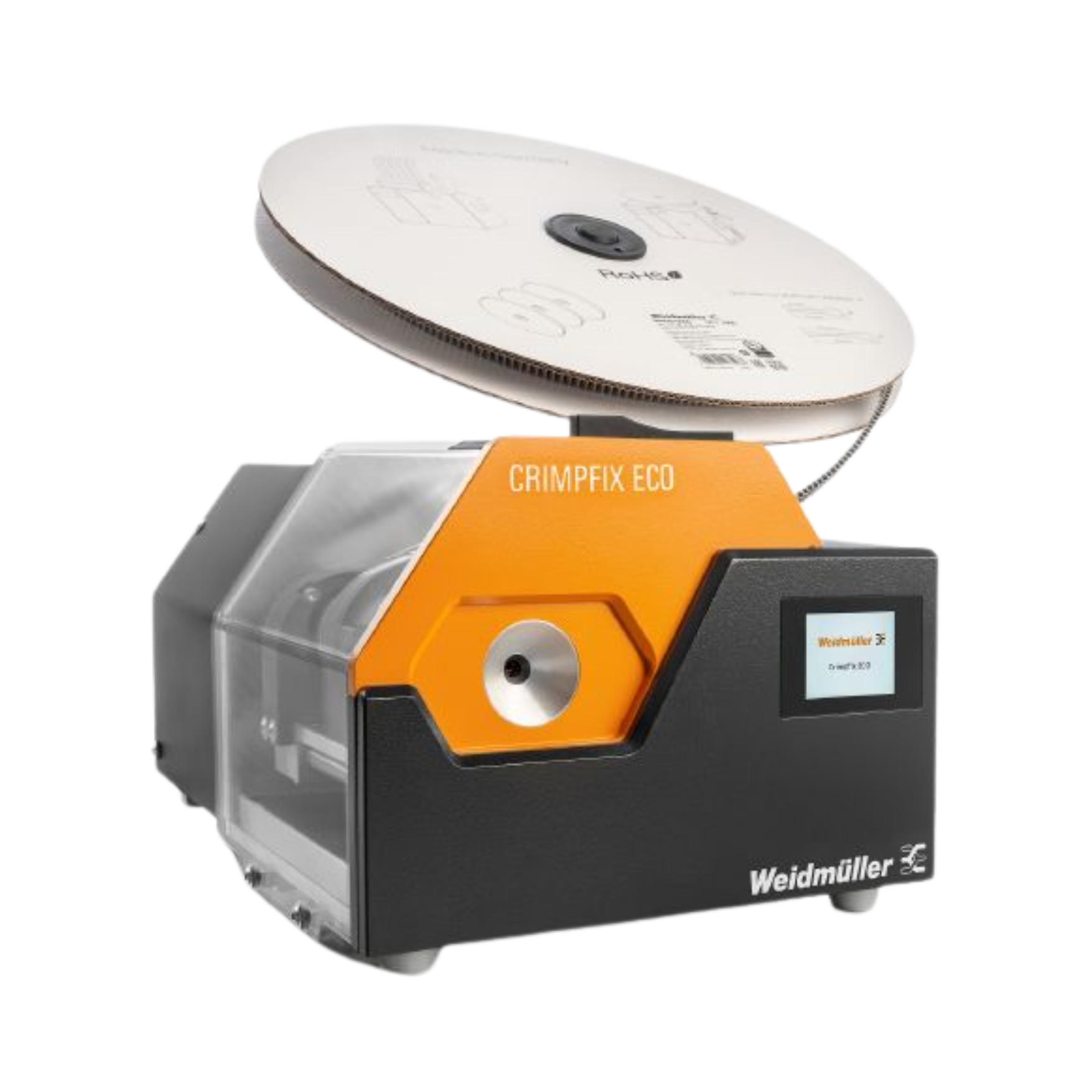

CRIMPFIX ECO – Automatic Crimping Machine
As a result of increasing requirements upon automatic crimping machines in the field of panel building, manufacturers and small/medium-sized producers face major challenges. Incoming orders are generally high, and there is a lack of trained professionals in the area. This means that panel builders expect their automatic crimping machines to have a high quality and process safety with cycle times that are as short as possible. Our partly automated solutions offer efficiency advantages for cable confectioning along with the highest possible flexibility. Thanks to coloured touch displays and easily adjusted mechanics, they are easy to operate. Our CRIMPFIX ECO meets all necessary requirements and will ensure that your company works as efficiently as possible.
Simple Cross-section Change
Simple Cross-section Change
The entire cross-section range from 0.5 to 2.5 mm² (~AWG20-14) can be processed without changing the mechanical components. The crimping unit with its parallel coordinated stripping function can be changed quickly and intuitively.
Easy Maintenance
Easy Maintenance
The CRIMPFIX ECO is very easy to maintain. All functional areas are easily visible, enabling quick and easy fault detection and rectification when servicing is required.
Purely Electrical Operation
Purely Electrical Operation
The CRIMPFIX ECO is equipped with a purely electrical drive, therefore offering diverse options for use inside and outside production facilities.
Fast Processing Time
Fast Processing Time
The short insertion length and fast stripping/crimping cycle start of the CRIMPFIX ECO ensure quick processing times of less than 1.5 seconds.
PZ 2.5 S – The handiest way to crimp
With the PZ 2.5, Weidmüller has developed a compact crimping tool especially for wire-end ferrules in the cross-section range from 0.14 to 2.5mm². By focusing on small cross-sections, it was possible to keep the size, weight, opening width, and actuating force of the new tool small without compromising on crimp quality. The result is currently the smallest professional crimping tool for wire-end ferrules on the market.
30 % handier
30 % handier
The handle width, opening angle, and weight of the extremely compact PZ 2.5 have been reduced by 30 %. This makes the crimping tool considerably more handy and easier to use.
100 % reliable
100 % reliable
The trapezoidal crimp in the cross-section range 0.14-2.5 mm² complies with all current standards. The practical universal die prevents incorrect insertion and ensures error-free work.
200% more durable
200% more durable
The focus on small cross-sections also reduces wear. The service life of the PZ 2.5 S has more than doubled.
