Spring connection with Weidmüller PUSH IN technology

Increase efficiency in installation without compromising on safety

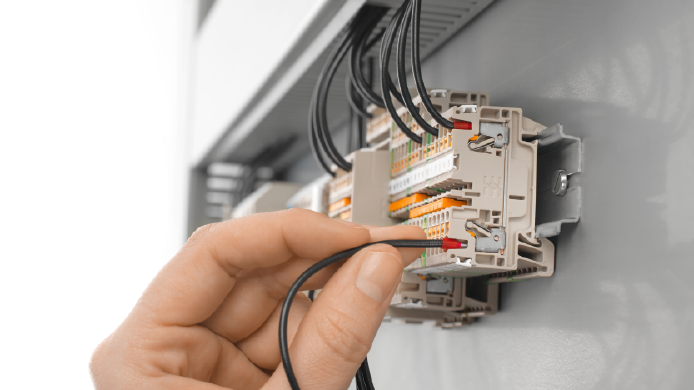

Direct plug connectors with PUSH IN technology reduce connection times for solid wires and those with crimped on wire-end ferrules by up to 50% compared to clamping yoke terminals. The conductor is simply inserted in the clamping unit to get a safe, gas-tight connection. Even flexible conductors can be connected without tools and trouble. Safe and reliable connections are crucial, especially under harsh conditions, such as those in the process industry. Weidmüller’s PUSH IN technology guarantees excellent contact security and ease of handling, even in demanding applications.

Time saving

Time saving

Increase efficiency in installation without compromising on safety. The innovative PUSH IN direct plug connector reduces connection times by up to 50 percent compared to clamping yoke terminals.

Ready-to-robot

Ready-to-robot

The enhanced compactness, combined with simple handling, helps improve processes right from the planning stage. PUSH IN technology guarantees excellent contact security and ease of handling.

Maximum flexibility

Maximum flexibility

Klippon® Connect gives your cabinet design maximum flexibility thanks to PUSH IN technology. The simple handling helps to improve processes right from the planning stage.

Your advantages:

  • Release of conductor without any tool

  • Flexible mounting foot for compensation of different terminal rail dimensions

  • Clear differentiation of functional areas

  • Slim design for large amount of cabinet space

  • Vibration-resistant and gas-tight connection with copper power rails and stainless steel spring

 Klippon® Connect A series with side PUSH IN technology

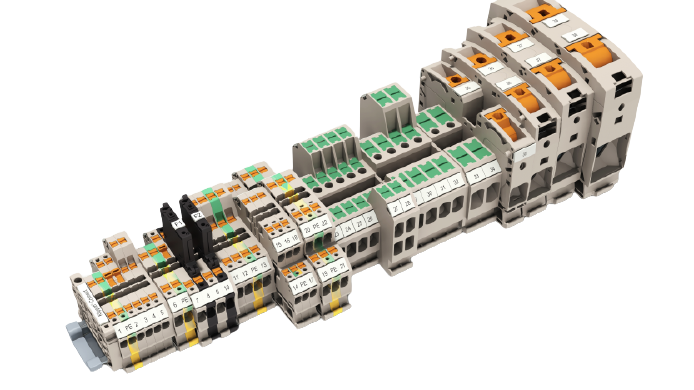

Weidmüller’s PUSH IN terminal blocks with wire side entry are ideal for use in compact and confined installation spaces. Whether control cabinet or distribution box, the time and space-saving PUSH IN lateral connection technology increases productivity in distribution cabinet building. The complete portfolio offers connection solutions from 0.14 to 185 mm². With feed-through, double-level, fuse and disconnect terminal blocks, all common applications in the control cabinet can be solved in a space and time-saving manner.

  • Clear wiring without protruding bending radius

  • Clear recognition of the functional areas, even in the wired state

  • Compatible with classic connection PUSH IN terminals

  • Uniform test system with standardised test tap

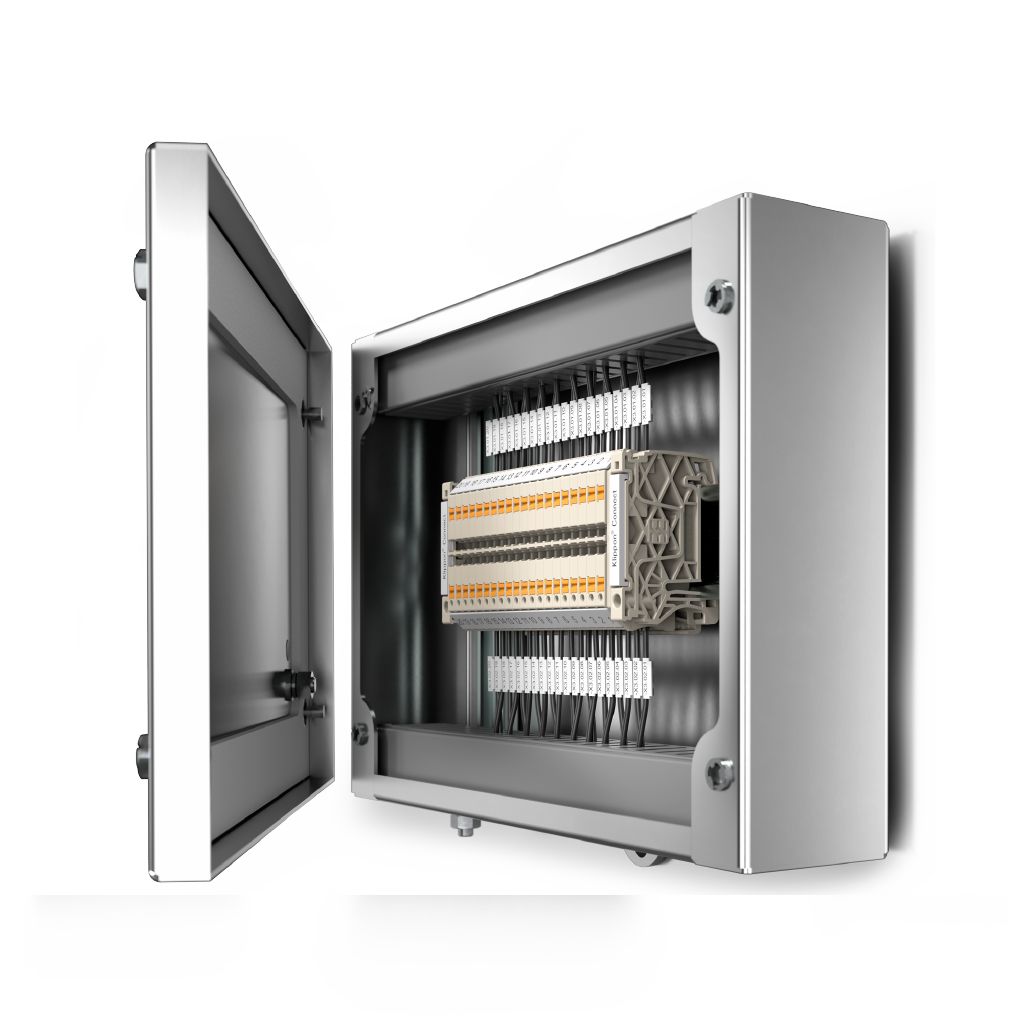

Low installation height

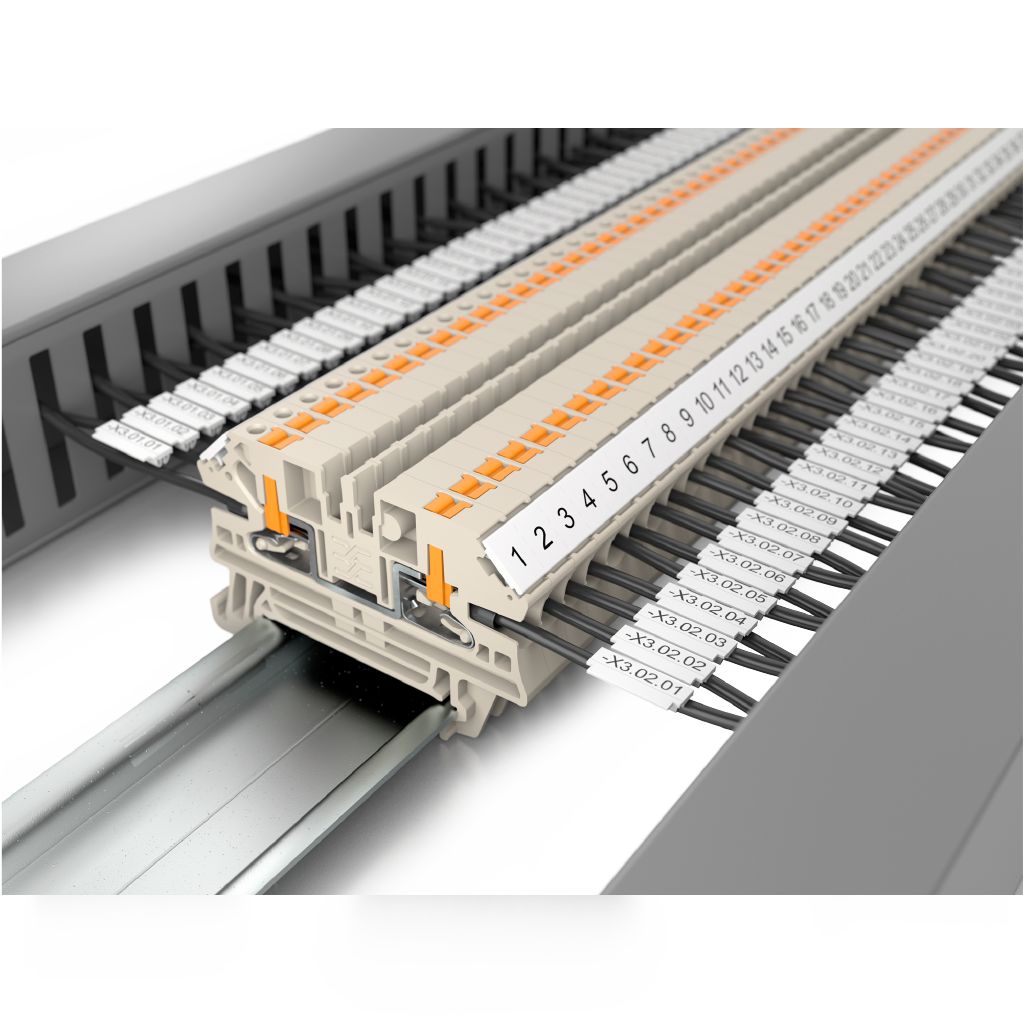

Where installation depth is low, the lateral conductor entry has decisive advantages, because the conductors can be connected without space-consuming bending. Wiring can be carried out very clearly and in a very confined space.

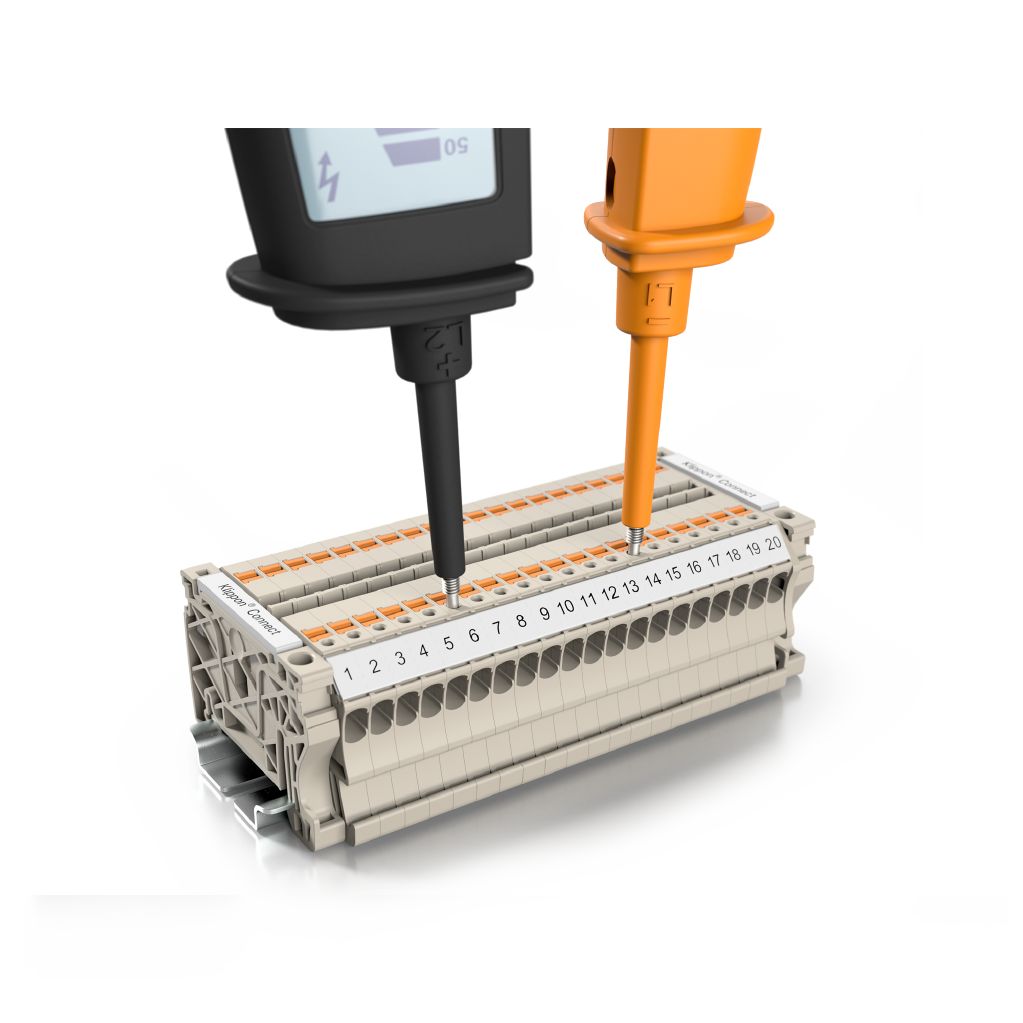

Uniform inspection and test system

The integrated test tap for standard test probes facilitates maintenance processes and troubleshooting. The lateral conductor entry increases clarity and makes the terminal blocks accessible for test systems even when wired.

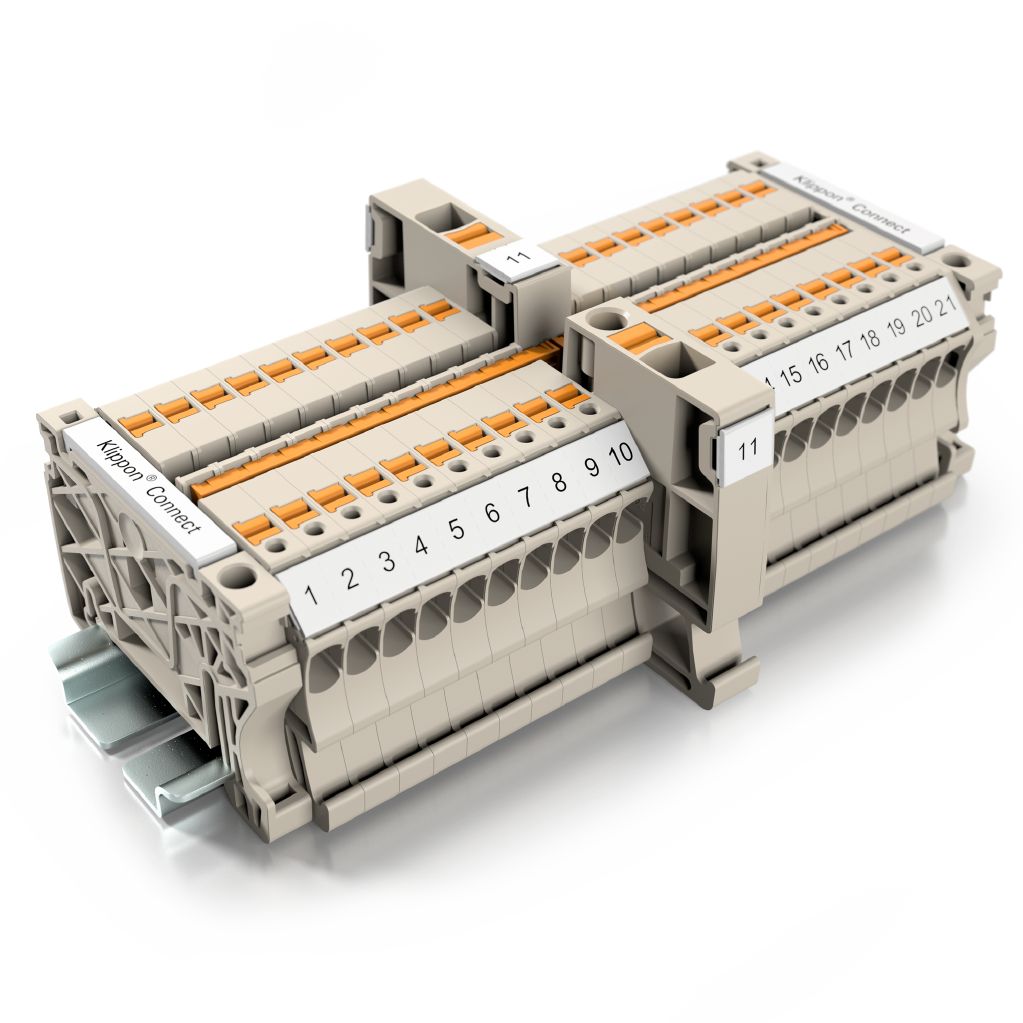

Good visibility of the functional areas

Due to the lateral conductor entry, markings and functional areas remain easily recognisable even when wired. Maintenance and repair processes can thus be carried out more easily, safely and quickly.

Compatible with A-series accessories

As an integral part of the A-Series, the extensive range of accessories can also be used with the new modular terminal blocks. This facilitates the duplication of potentials via cross-connections and reduces ordering and storage costs.
